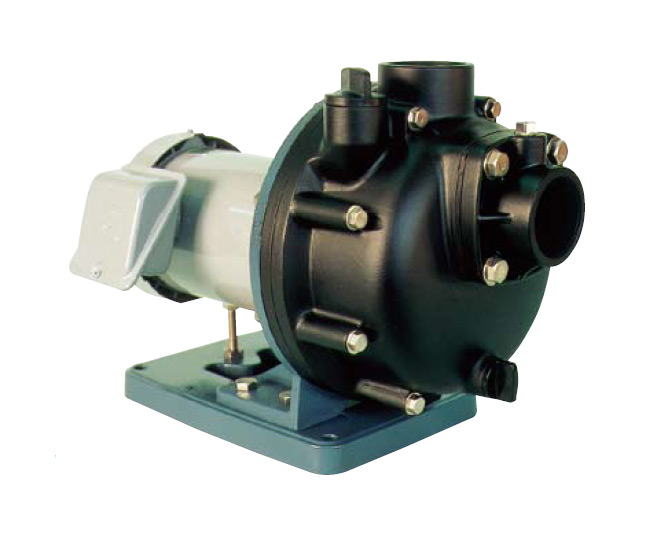

ESPM Type

Email
ESPM

APPLICATIONS

  • Used to pump sea water, for big capacity tanks
  • Pumping hot water (under 40oC), office, school
  • Water supply in industry areas
  • Pumping irrigation, agriculture

FEATURES

  • The part of attachment made of stainless steel SUS 316. The multipolar uses for pumping sea water
  • Due to the feature of casing and semi-open impeller, promote high performance
  • The ligh sound of motor and pumps synchronized so operating the sound becomes lower
  • The part of sealing is sealed by mechanical so to be easy to maintenance

SPECIFICATIONS

  • Liquid nature : fresh water

-Liquid temp: 0-40oC(over 0.2kW)

0-50oC :0.1kW

  • Max. depth: - 0.1kW :3m (20oC)

-          0.2 – 0.4kW : 6m ( 20oC)

-          over 0.75kW :7m ( 20oC)

  • Structure:   - Impeller: semi-open

-          Bearing

-          Sealing : closed seal

  • Material: - Impeller: technical plastic

-          Shart: stainless steel SUS 420J2

-          Casing : technical plastic

  • Motor : - Type : preventive protection,0.1kW and openoutdoor,0.2 – 1.5kW

                                         - Power :single ,100V(under 0.4kW) and 3 phase 200V(over 0.2kW)

                                         - Rated speed: 3000 min-1

Catalog Download

documentESPM
