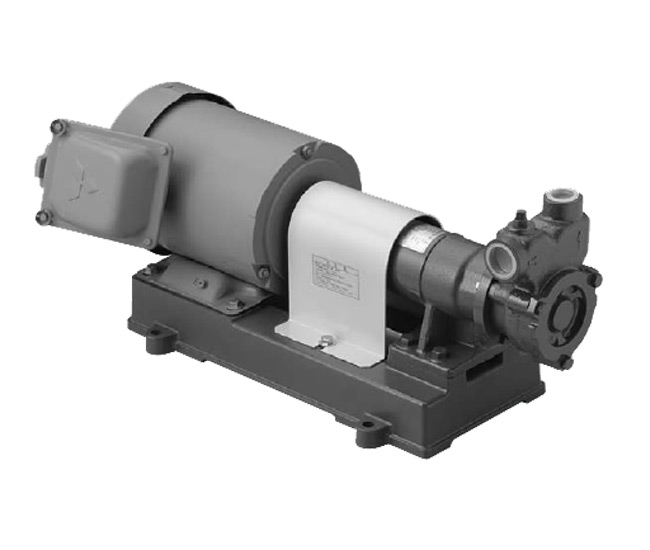

OKH-OKHM Type

APPLICATIONS

• Pressure boosting
• Natural oil
• Water supply in building
• Water supply in industry
• The other applications

FEATURES

• Due to features of impeller cascade form, operating the sound lower
• Features of motor safely and high pressure is low so used widely

SPECIFICATIONS

•             Liquid nature: - Light oil , heavy oil type A

                                         - Liquid temp: Under 90oC

•             Max. depth : - -4m

•             Structure:   - Impeller: cascade

                                 - Bearing:Mechanical seal

- Sealing: enclosed channel

•             Material:     - Impeller: stainless steel 403

   -   Shaft: stainless steel 316

                - Casing :Cast iron FC200

•             Motor : - Type: Safety indoor

- power: 3 phase 200V

- Rotation speed: 3000 min^-1

Catalog Download

OKH-OKHM
